Product Details
＋
The Kong anchor connector is made of high quality stainless steel AISI 316.

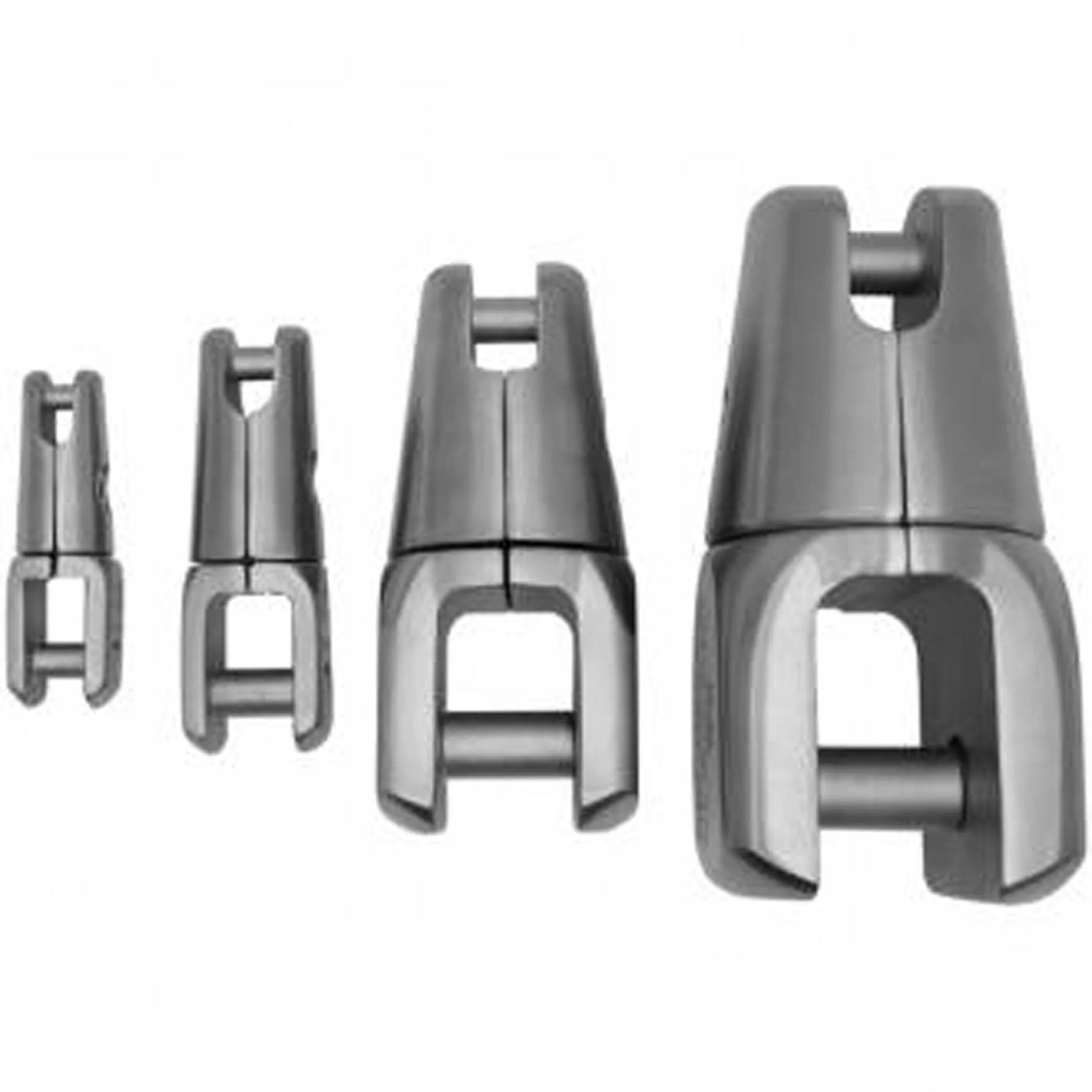

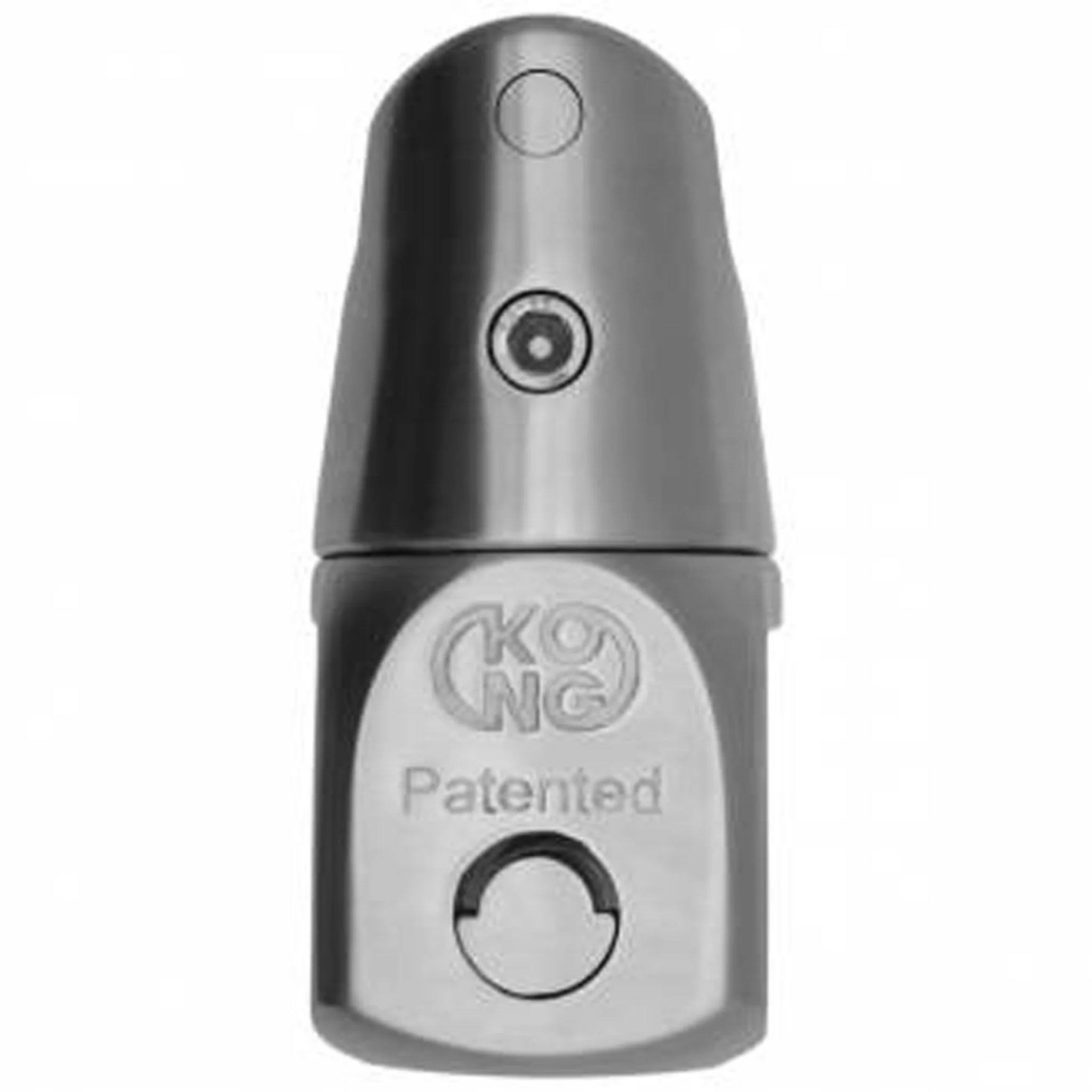

Kong Stainless steel swivel anchor connector features:
- The swivel anchor connector is great for reducing chain twist when trying to bring an anchor to the surface
- Allows the anchor to swivel independently and the connector to ride smoothly over the bow roller
- Designed to go over bow rollers and pass through hawse pipes without snagging
- Sleek, slim, snag-free profile

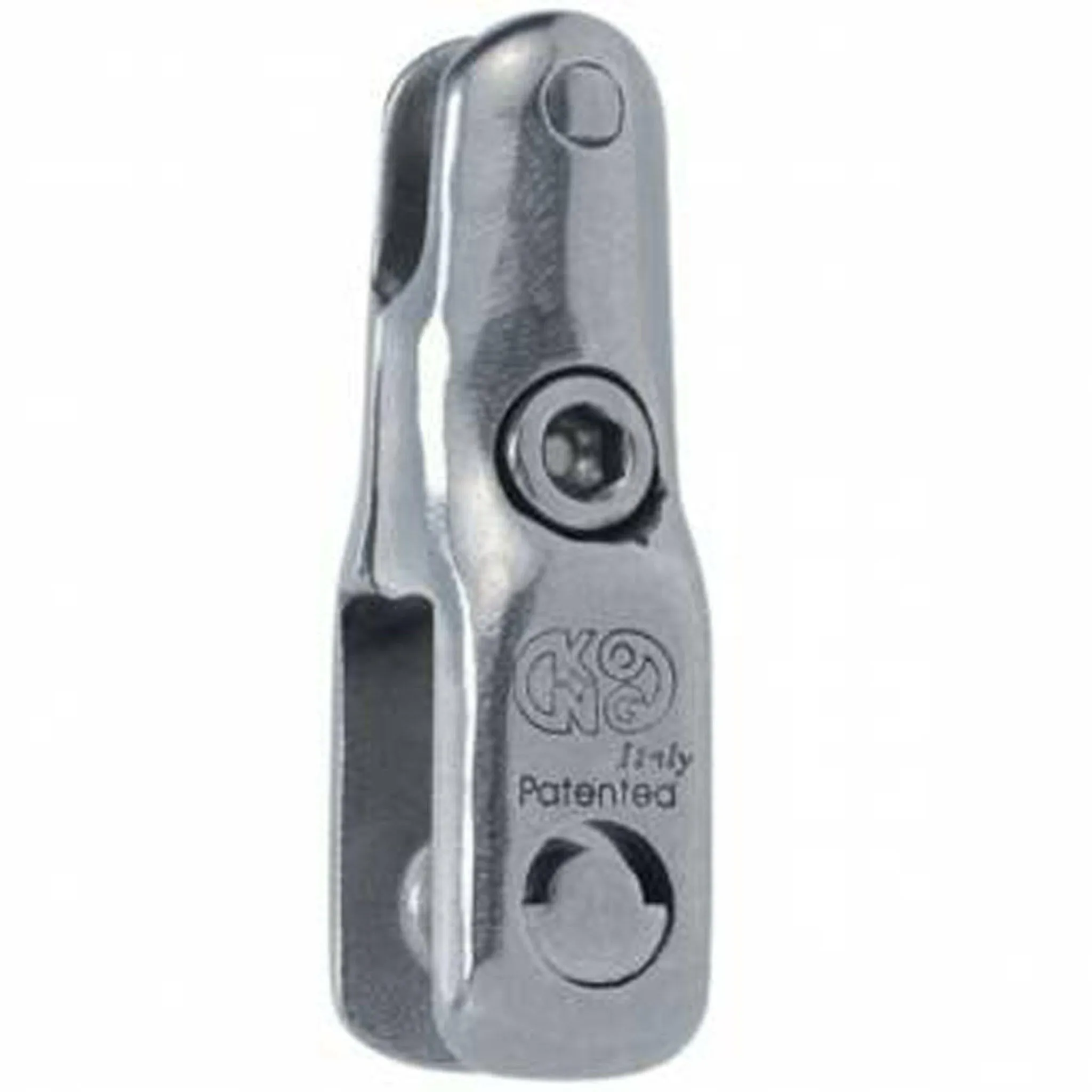

Kong Stainless steel fixed anchor connector features:
- Slim profile
- Non-swivelling
- Snag-free passage over bow rollers and through hawsepipes
| Type | Kong Chain Size | Jaw Width on Anchor End | Kong Break Load Straight | Kong Safe Working Load Lateral | Compatibility |
|---|---|---|---|---|---|
6 - 8 mm Swivel | 6-8mm | 16mm | 2500kg | 850kg | 6mm,7mm |
6 - 8 mm Fixed | 6-8mm | - | 2500kg | 850kg | 6mm, 7mm |
| 8-12 mm Swivel | 8-12mm | 5000kg | 2000kg | 8mm, 10mm | |
8-12 mm Fixed | 8-12mm | - | 5000kg | 2000kg | 8mm, 10mm |
Kong Chain Size = the chain sizes that fit on the chain end, not the anchor end
MBL = Manufacturer (Kong) straight Break Load
MWL = Manufacturer (Kong) lateral Safe Working Load
Compatibility = reasonable compatibility with Grade 40 chain break load
